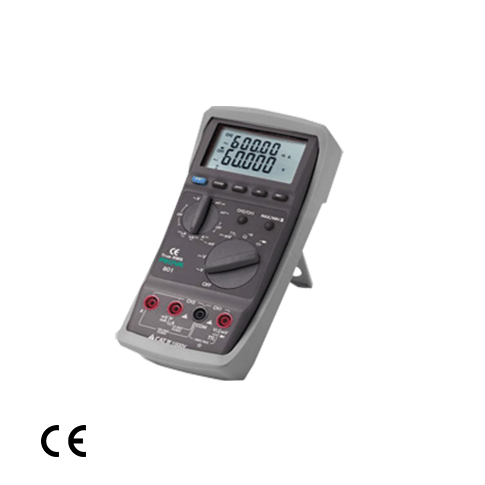

DIGITAL MULTI-METER

FEATURES:

• 60,000 COUNT AND DUAL INPUT CHANNELS
• 0.04% DC BASIC ACCURACY AND 0.2% AC BASIC ACCURACY
• BANDWIDTH OF 10KHZ(MAX) • FAST ACV, ACA RESPONSE
• DUAL CHANNELS MEASUREMENT SIMILAR TO A DUAL CHANNELS DSO(V+V,V+A)
• HZ + DUTY CYCLE DUAL DISPLAY
• CAPACITANCE MEASUREMENT
• STANDALONE DATA LOGGING OF 10,708 RECORDS FOR BOTH CHANNELS(803)
• RS-232C INTERFACE
• APPLICATION SOFTWARE (OPTION)
• 1/7 THE COST

SPECIFICATION:

• THE FOLLOWING ACCURACY IS SPECIFIED FOR ONE SINGLE
  CHANNEL (CHANNEL 1 OR CHANNEL 2). IF DUAL CHANNELS
  ARE USED AT THE SAME TIME, ADDITIONAL % OF ACCURACY
  SHOULD BE ADDED TO THE LISTED ACCURACY. PLEASE REFER
  TO THE SUPPLEMENTAL DUAL CHANNELS SPECIFICATION.
  THE FOLLOWING ACCURACY IS ALSO SPECIFIED FOR THE
  ZEROED (RELATIVE) VALUE. THE ACCURACY IS GIVEN AS ±%
  OF READING ± NUMBER OF LEAST SIGNIFICANT DIGITS.
