EUROPEAN TYPE COMBINATION WRENCH

EUROPEAN TYPE COMBINATION WRENCH
EUROPEAN TYPE COMBINATION WRENCH
AWT-ERS-SERIES
EUROPEAN TYPE COMBINATION WRENCH
Share To Line Share To Facebook Share To Twitter mail
Inquiry
Product Description

AWT-ERS06, AWT-ERS07, AWT-ERS08, AWT-ERS09, AWT-ERS10, AWT-ERS11,
AWT-ERS12, AWT-ERS13, AWT-ERS14, AWT-ERS15, AWT-ERS16, AWT-ERS17,
AWT-ERS18, AWT-ERS19, AWT-ERS20, AWT-ERS21, AWT-ERS22, AWT-ERS23,
AWT-ERS24, AWT-ERS25, AWT-ERS26, AWT-ERS27, AWT-ERS28, AWT-ERS29,
AWT-ERS30, AWT-ERS32, AWT-ERS33, AWT-ERS34, AWT-ERS35, AWT-ERS36,
AWT-ERS38, AWT-ERS41, AWT-ERS42, AWT-ERS43, AWT-ERS44, AWT-ERS45,
AWT-ERS46, AWT-ERS48, AWT-ERS50,
AWT-ERS0001, AWT-ERS0002, AWT-ERS0003, AWT-ERS0004, AWT-ERS0005,
AWT-ERS0006, AWT-ERS0007, AWT-ERS0008, AWT-ERS0009, AWT-ERS0010,
AWT-ERS0011, AWT-ERS0012, AWT-ERS0013, AWT-ERS0014, AWT-ERS0015,
AWT-ERS0016, AWT-ERS0017, AWT-ERS0018, AWT-ERS0019, AWT-ERS0020,
AWT-ERS0021, AWT-ERS0022, AWT-ERS0023, AWT-ERS0024, AWT-ERS0025,
AWT-ERS0026, AWT-ERS0027, AWT-ERS0028



proimages/product/AWT-ERSz1.png

  • MATTE FINISHED & BRIGHTLY POLISHED ON HEADS
  • SUNK PANEL: ALL DROP FORGED FROM CHROME VANADIUM STEEL
  • DIN 3113
  • PLASTIC HANGER + LABEL: ITEM NO. + "-HT"

ITEM NO. SIZE
(MM / INCH)		 L
(MM)		 A
(MM)		 B
(MM)		 C
(MM)		 D
(MM)		 WEIGHT
(G)
AWT-ERS06 6 102 15.7 10.4 3.6 4.5 17
AWT-ERS07 7 112 17.2 11.6 4.0 4.9 20
AWT-ERS08 8 122 19.6 12.8 4.5 5.3 26
AWT-ERS09 9 132 21.5 14.6 4.7 5.7 35
AWT-ERS10 10 140 23.8 16.2 4.9 6.6 40
AWT-ERS11 11 150 25.6 17.5 5.0 6.9 50
AWT-ERS12 12 160 27.4 18.4 5.4 7.2 59
AWT-ERS13 13 170 29.6 19.8 5.9 7.7 75
AWT-ERS14 14 180 31.7 21.6 6.2 8.6 92
AWT-ERS15 15 190 33.2 23.1 6.5 8.7 95
AWT-ERS16 16 200 34.7 24.5 6.6 8.9 109
AWT-ERS17 17 210 36.8 25.8 6.7 8.9 112
AWT-ERS18 18 220 38.8 26.9 7.1 9.9 149
AWT-ERS19 19 230 40.8 28.6 7.4 10.3 165
AWT-ERS20 20 240 43.0 29.7 7.6 10.5 185
AWT-ERS21 21 250 45.3 31.8 7.8 11.0 209
AWT-ERS22 22 260 46.6 32.7 8.0 11.7 231
AWT-ERS23 23 270 47.7 33.5 8.4 11.9 234
AWT-ERS24 24 280 50.4 35.9 8.5 12.2 274
AWT-ERS25 25 290 52.5 36.9 8.8 12.3 286
AWT-ERS26 26 300 53.0 38.2 9.0 12.4 310
AWT-ERS27 27 310 53.3 38.5 9.2 12.5 330
AWT-ERS28 28 320 56.6 40.5 9.3 12.6 388
AWT-ERS29 29 330 59.0 41.4 9.5 12.8 419
AWT-ERS30 30 340 62.3 43.9 9.9 13.2 474
AWT-ERS32 32 360 65.7 45.7 10.3 14.0 523
AWT-ERS33 33 380 69.2 50.2 11.6 15.7 686
AWT-ERS34 34 380 69.2 50.2 11.6 15.7 686
AWT-ERS35 35 410 74.6 54.3 13.2 18.5 878
AWT-ERS36 36 410 74.6 54.3 13.2 18.5 878
AWT-ERS38 38 440 77.0 57.0 14.4 19.0 968
AWT-ERS41 41 460 83.6 61.3 14.5 21.5 1234
AWT-ERS42 42 460 83.6 61.3 14.5 21.5 1234
AWT-ERS43 43 460 83.6 61.3 14.5 21.5 1234
AWT-ERS44 44 500 89.3 63.9 15.0 21.7 1566
AWT-ERS45 45 500 89.3 63.9 15.0 21.7 1566
AWT-ERS46 46 500 89.3 63.9 15.0 21.7 1566
AWT-ERS48 48 540 97.0 73.5 16.9 23.1 1951
AWT-ERS50 50 540 97.0 73.5 16.9 23.1 1951
AWT-ERS0001 1/4 102 15.7 10.4 3.6 4.5 17
AWT-ERS0002 5/16 122 19.6 12.8 4.5 5.3 26
AWT-ERS0003 3/8 140 23.8 16.2 4.9 6.6 40
AWT-ERS0004 7/16 150 25.6 17.5 5.0 6.9 50
AWT-ERS0005 1/2 170 29.6 19.8 5.9 7.7 75
AWT-ERS0006 9/16 180 31.7 21.6 6.2 8.6 92
AWT-ERS0007 5/8 200 34.7 24.5 6.6 8.9 109
AWT-ERS0008 11/16 210 36.8 25.8 6.7 8.9 112
AWT-ERS0009 3/4 230 40.8 28.6 7.4 10.3 165
AWT-ERS0010 13/16 240 43.0 29.7 7.6 10.5 185
AWT-ERS0011 7/8 260 46.6 32.7 8.0 11.7 231
AWT-ERS0012 15/16 280 50.4 35.9 8.5 12.2 274
AWT-ERS0013 1 290 52.5 36.9 8.8 12.3 286
AWT-ERS0014 1-1/16 310 53.3 38.5 9.2 12.5 330
AWT-ERS0015 1-1/8 330 59.0 41.4 9.5 12.8 419
AWT-ERS0016 1-1/4 360 65.7 45.7 10.3 14.0 523
AWT-ERS0017 1-5/16 380 69.2 50.2 11.6 15.7 686
AWT-ERS0018 1-3/8 410 74.6 54.3 13.2 18.5 878
AWT-ERS0019 1-7/16 410 74.6 54.3 13.2 18.5 878
AWT-ERS0020 1-1/2 440 77.0 57.0 14.4 19.0 968
AWT-ERS0021 1-9/16 460 83.6 61.3 14.5 21.5 1234
AWT-ERS0022 1-5/8 460 83.6 61.3 14.5 21.5 1234
AWT-ERS0023 1-11/16 460 83.6 61.3 14.5 21.5 1234
AWT-ERS0024 1-3/4 500 89.3 63.9 15.0 21.7 1566
AWT-ERS0025 1-13/16 500 89.3 63.9 15.0 21.7 1566
AWT-ERS0026 1-7/8 540 97.0 73.5 16.9 23.1 1951
AWT-ERS0027 1-15/16 540 97.0 73.5 16.9 23.1 1951
AWT-ERS0028 2 540 97.0 73.5 16.9 23.1 1951

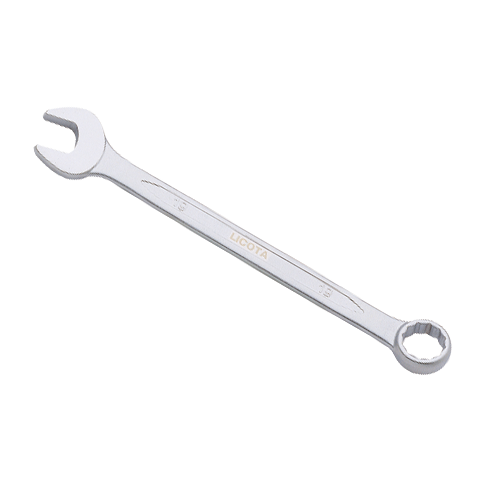

proimages/product/AWT-ERS.png





Contents:

  • 1 PC EUROPEAN TYPE COMBINATION WRENCH

  • PACKING: BULK + COLOR / CORRUGATED BOX + LABEL
