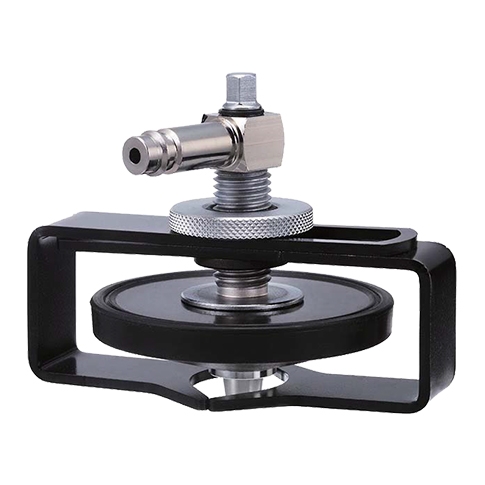

UNIVERSAL BRAKE REFILLING ADAPTER

Features:

• Adjustable Wings To Fit Various Brake Reservoir Filler Neck Sizes

• Fits Master Cylinder Fill Neck Between Ø26-79 mm / 1.0”-3.1”.

• Maximum Pressure Up To 3.5 Bar / 50 Psi.

1. Unscrew The Width Adjusting Nut To Adjust The Opening Of

    The Wings (Fig 2)

2. Fit The Adapter On The Master Cylinder Reservoir And Loosely

   Fit The Wings On The Filler Neck (Fig 2)

3. Adjust The Height By Adjusting The Screw And Fix The Adapter

   Securely By Turning The Round Nut (Fig 3)

4. Make Sure The Adapter Is Securely Connected On The Master

    Cylinder Filler Neck Before Connecting The Adapter To Brake
    Service Machines (Fig 4)

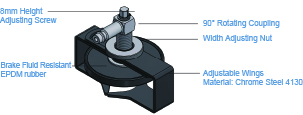

• 8mm Height Adjusting Screw
• 90° Rotating Coupling
• Width Adjusting Nut
• Adjustable Wings Material: Chrome Steel 4130
• 8mm Height Adjusting Screw
• Brake Fluid Resistant EPDM rubber
